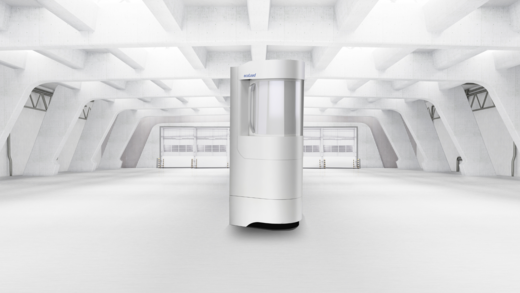

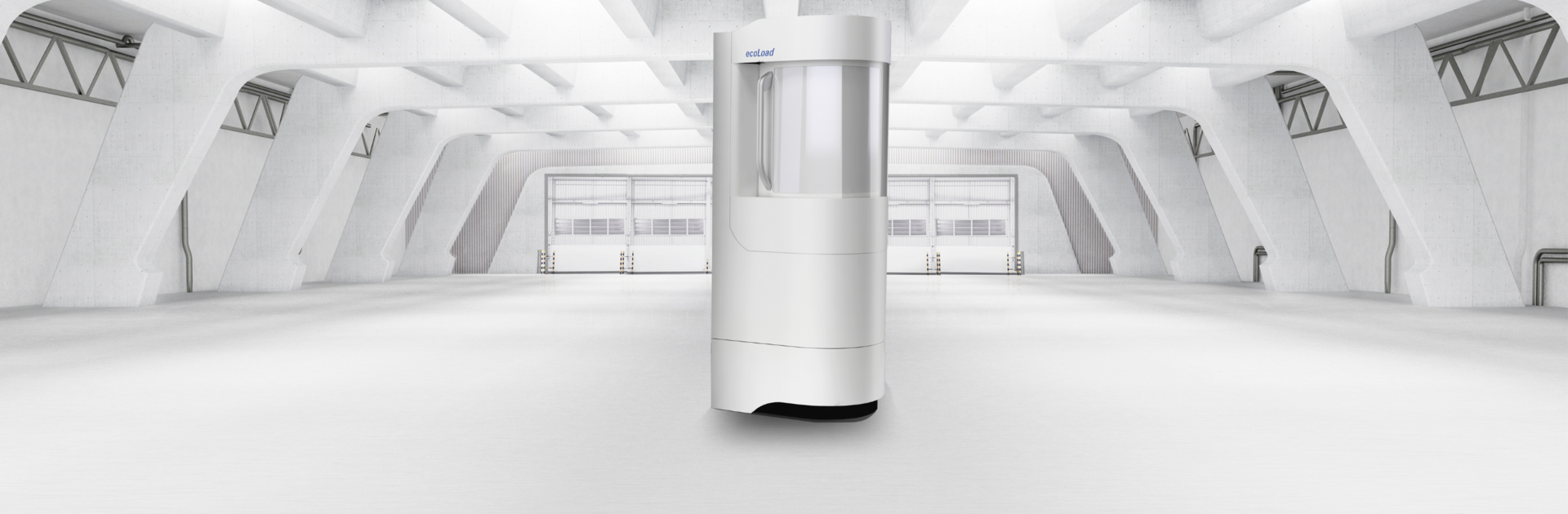

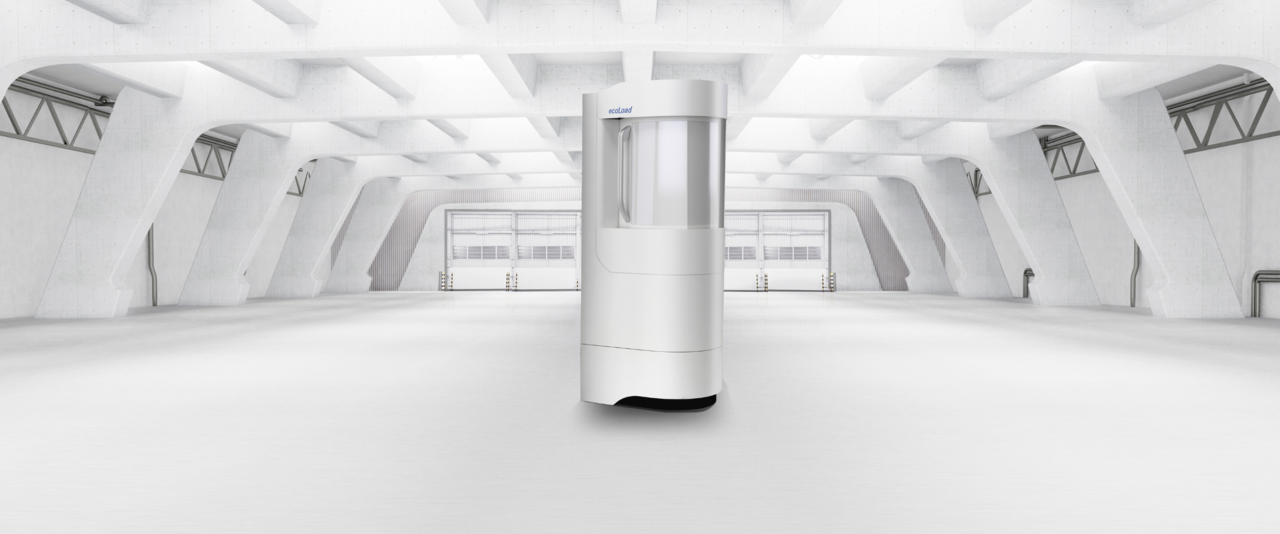

Automation with ecoLoad
The new integrated ecoLoad handling concept for workpieces up to dia. 50mm and 250mm in length fulfills all requirements with respect to efficiency, quality and compact design.
Two different periphies are available:

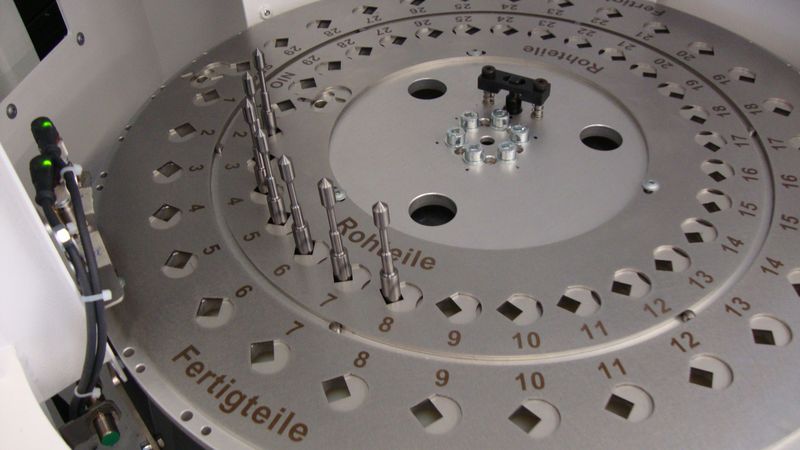

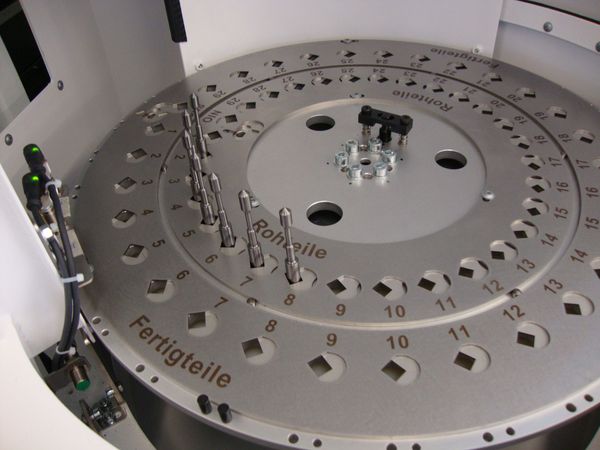

1. Revolver magazine concept with swivel gripper
2. Prisma shuttle with V-gripper (this version can also be used as an interface for alternative freestanding loader concepts).
Technical specification
Maschine types S22
__________________________________________________________________________
Spectrum of parts Shaft and chuck components
___________________________________________________________________________
Autonomy Part diameter: Ø 4 - 20 mm (0.15" - 0.78") = 60 parts
Part diameter: Ø 16 - 50 mm (0.62" - 1.96") = 28 parts
___________________________________________________________________________
Workpiece dimensions Part length: max. 250 mm (3.84")
Gripping diameter: max Ø 30 mm (1.18")
Part diameter: max Ø 50 mm (1.96")
Part weight: max. 10 kg (22.04 lbs) (with dual gripper)
Part weight: max. 3 kg (6.61 lbs) (with revolver magazine)
5 kg (11.02 lbs) (with Shuttle)
___________________________________________________________________________
Workpiece loading time 10 seconds
___________________________________________________________________________
Control system STUDER CNC
___________________________________________________________________________
Construction and equipment Gantry module fully integrated in machine casing, controlled
via machine control. Depending on the version, with turntable
magazine or shuttle with prism tray for manual or further automation.
___________________________________________________________________________
Installation space approx. Width: 700 mm (27.56"), length 750 mm (29.52")
