The price hit for a
large range of applications.
Basic Data

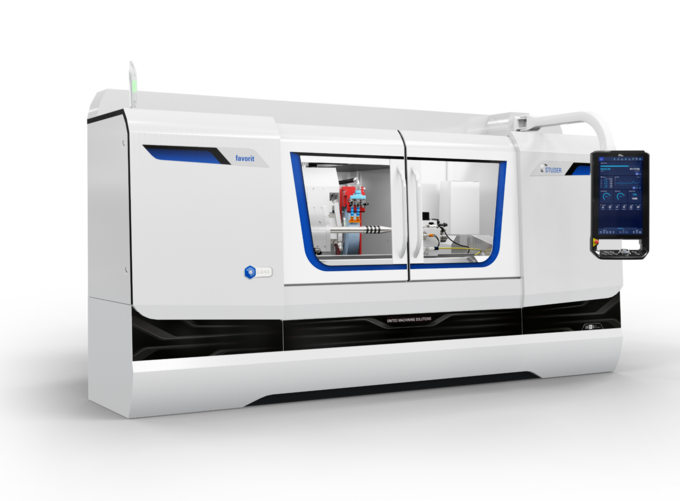

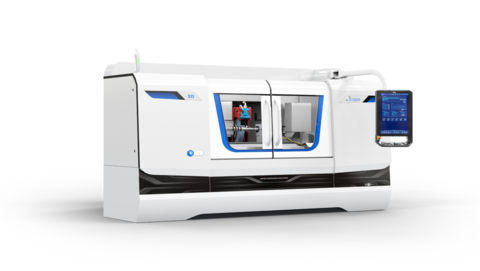

The cylindrical grinding machine can be used in universal applications, and thanks to StuderPictogramming it is easy and quick to program. Your Granitan® S103 mineral-casting machine base largely offsets short-term temperature fluctuations. It can subsequently be easily adapted to other grinding tasks using various accessory kits such as in-process gauging, balancing system, contact detection and length positioning.
Read more
Images
Hardware / Software
Hardware:
- Optional wheelhead:
- Turret wheelhead with right or left grinding wheel and an internal grinding attachment
- Automatic swiveling with 3° Hirth serration
- External wheelhead with grinding wheel on right, 0° / 15° / 30° - External and internal grinding possible in one clamping
- Granitan® S103 mineral casting machine base
- CE-conform
Software:
- Extremely easy programming with StuderPictogramming
- StuderGRIND programming software (optional) for creating grinding and dressing programs on an external PC
Technical Data
Linear Axes
Max. Travel X
370 mm
Max. Travel Speed X
15'000 mm/min
Max. Travel Z
500 mm
Max. Travel Speed Z
20'000 mm/min
Spindle drive
Max. Spindle Power
8 kW
Max. Number Of Revolutions
3'200 /min
Max. Grinding Wheel Diameter
508 mm
Max. Grinding Wheel Width
80 mm
Swiveling Axes
Swiveling Range B
240 °
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length
0 -
400 mm
Workpiece Diameter
0 -
349 mm
Max. Workpiece Weight
150 kg
Distance Between Centers
400 mm
Center Height
175 mm
Linear Axes
Max. Travel X
370 mm
Max. Travel Speed X
15'000 mm/min
Max. Travel Z
800 mm
Max. Travel Speed Z
20'000 mm/min
Spindle drive
Max. Spindle Power
8 kW
Max. Number Of Revolutions
3'200 /min
Max. Grinding Wheel Diameter
508 mm
Max. Grinding Wheel Width
80 mm
Swiveling Axes
Swiveling Range B
240 °
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length
0 -
650 mm
Workpiece Diameter
0 -
349 mm
Max. Workpiece Weight
150 kg
Distance Between Centers
650 mm
Center Height
175 mm
Linear Axes
Max. Travel X
370 mm
Max. Travel Speed X
15'000 mm/min
Max. Travel Z
1'150 mm
Max. Travel Speed Z
20'000 mm/min
Spindle drive
Max. Spindle Power
8 kW
Max. Number Of Revolutions
3'200 /min
Max. Grinding Wheel Diameter
508 mm
Max. Grinding Wheel Width
80 mm
Swiveling Axes
Swiveling Range B
240 °
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length
0 -
1'000 mm
Workpiece Diameter
0 -
349 mm
Max. Workpiece Weight
150 kg
Distance Between Centers
1'000 mm
Center Height
175 mm
Linear Axes
Max. Travel X
370 mm
Max. Travel Speed X
15'000 mm/min
Max. Travel Z
1'750 mm
Max. Travel Speed Z
20'000 mm/min
Spindle drive
Max. Spindle Power
8 kW
Max. Number Of Revolutions
3'200 /min
Max. Grinding Wheel Diameter
508 mm
Max. Grinding Wheel Width
80 mm
Swiveling Axes
Swiveling Range B
240 °
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length
0 -
1'600 mm
Workpiece Diameter
0 -
349 mm
Max. Workpiece Weight
150 kg
Distance Between Centers
1'600 mm
Center Height
175 mm
